Description
Overview of the GC Audio 500 Rack

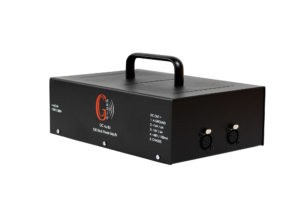

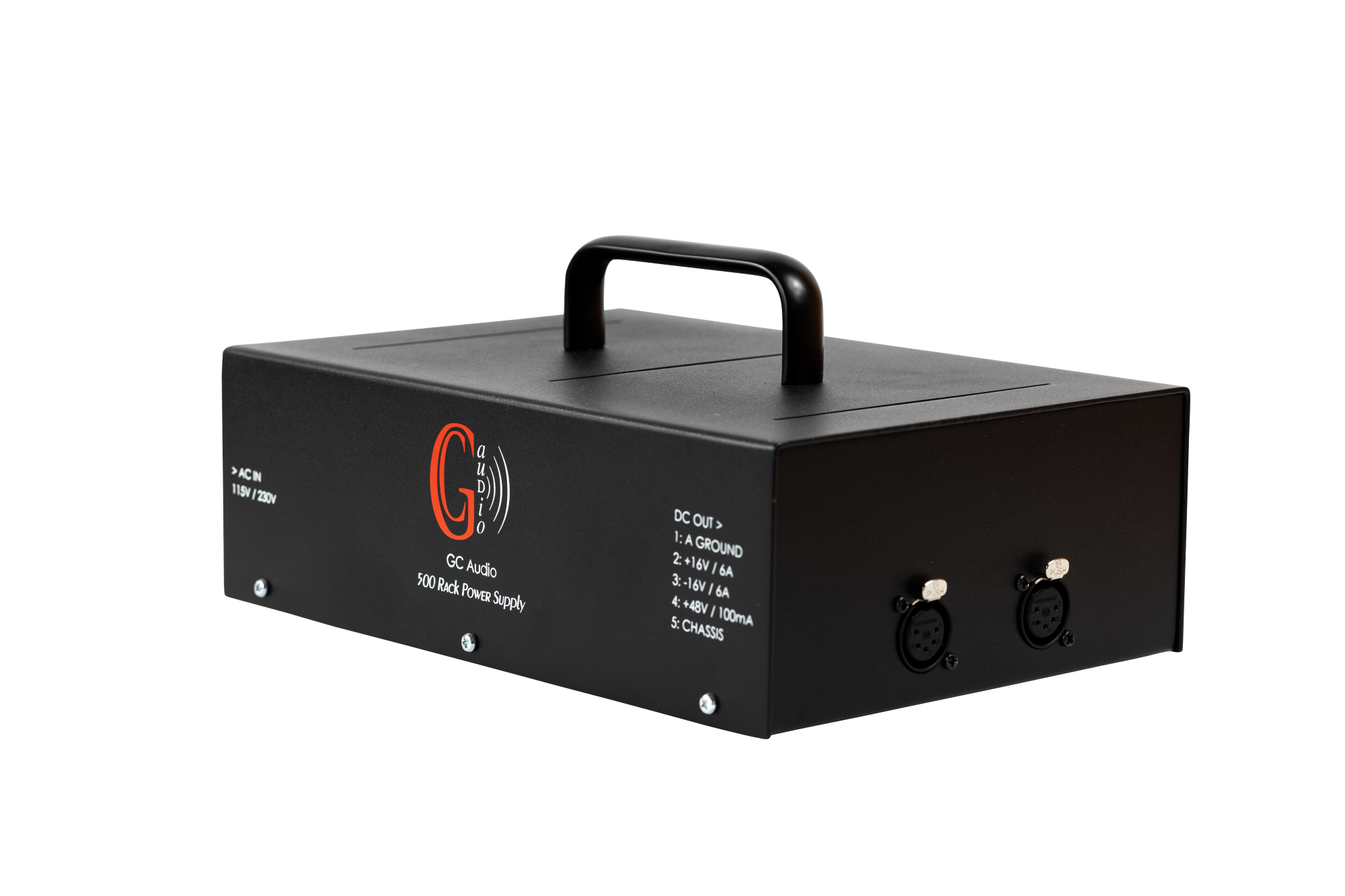

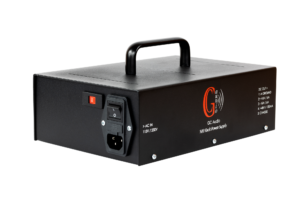

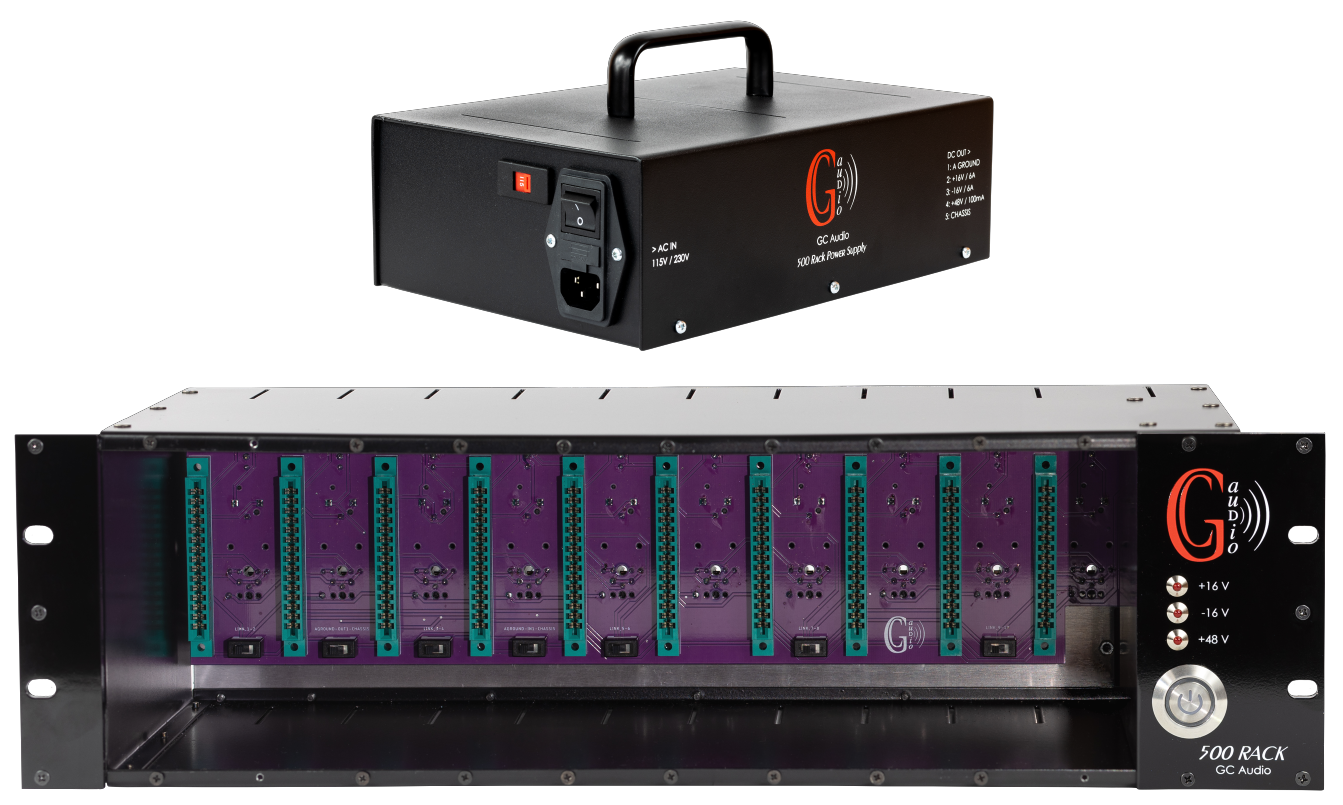

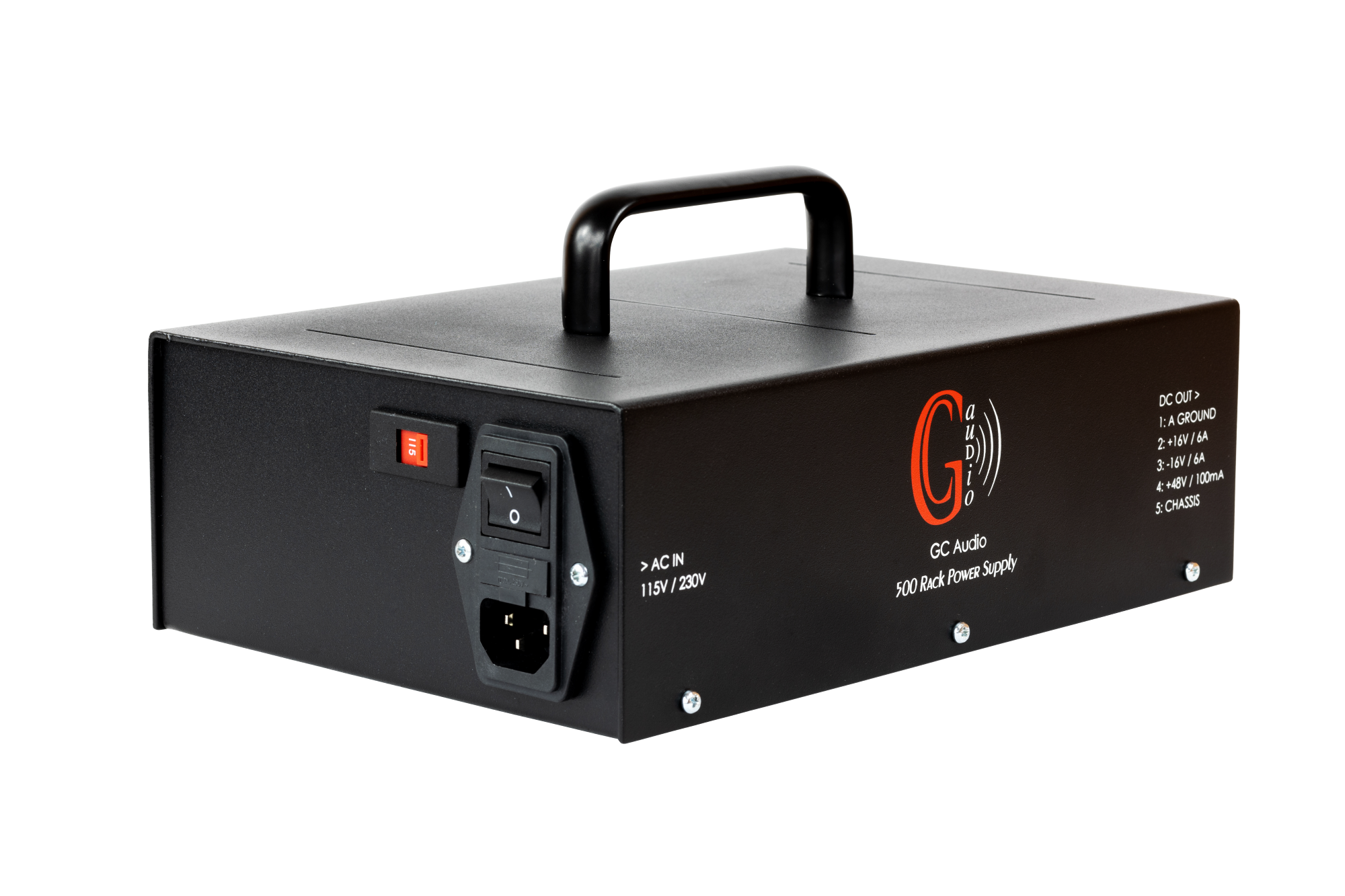

The GC Audio 500 Rack features an external linear power supply with a total capacity of 12 Amps, making it the most powerful 500 rack on the market. Its thick steel chassis provides excellent shielding against electromagnetic radiation, ensuring optimal isolation for your 500 series modules.
Key Features
- Powerful External Linear Power Supply: 12 Amps total capacity (6A for +16V and 6A for -16V).
- Robust Construction: 1.5mm thick steel chassis, 50% thicker than other racks.
- High-Quality Connectors: Neutrik connectors for inputs and outputs.
- Stereo Link Switch: Instantly connects the signal of a mono module to an adjacent mono module.
- Ground Lift Switches: Allows you to choose whether the ground should be connected to the chassis or the analog ground.
- Universal Power Supply: Switchable between 110V and 230V.
Technical Specifications
Power Supply
- Total Capacity: 12 Amps (6A for +16V and 6A for -16V).
- Toroidal Transformer: 225VA followed by a 10A diode bridge.
- Voltage Regulators: Power transistors for high current capacity and low residual ripple.
- Safety Features: Fuses on the mains side, +16V circuit, and -16V circuit.
- Voltage Switch: 110V / 230V for universal compatibility.
Chassis

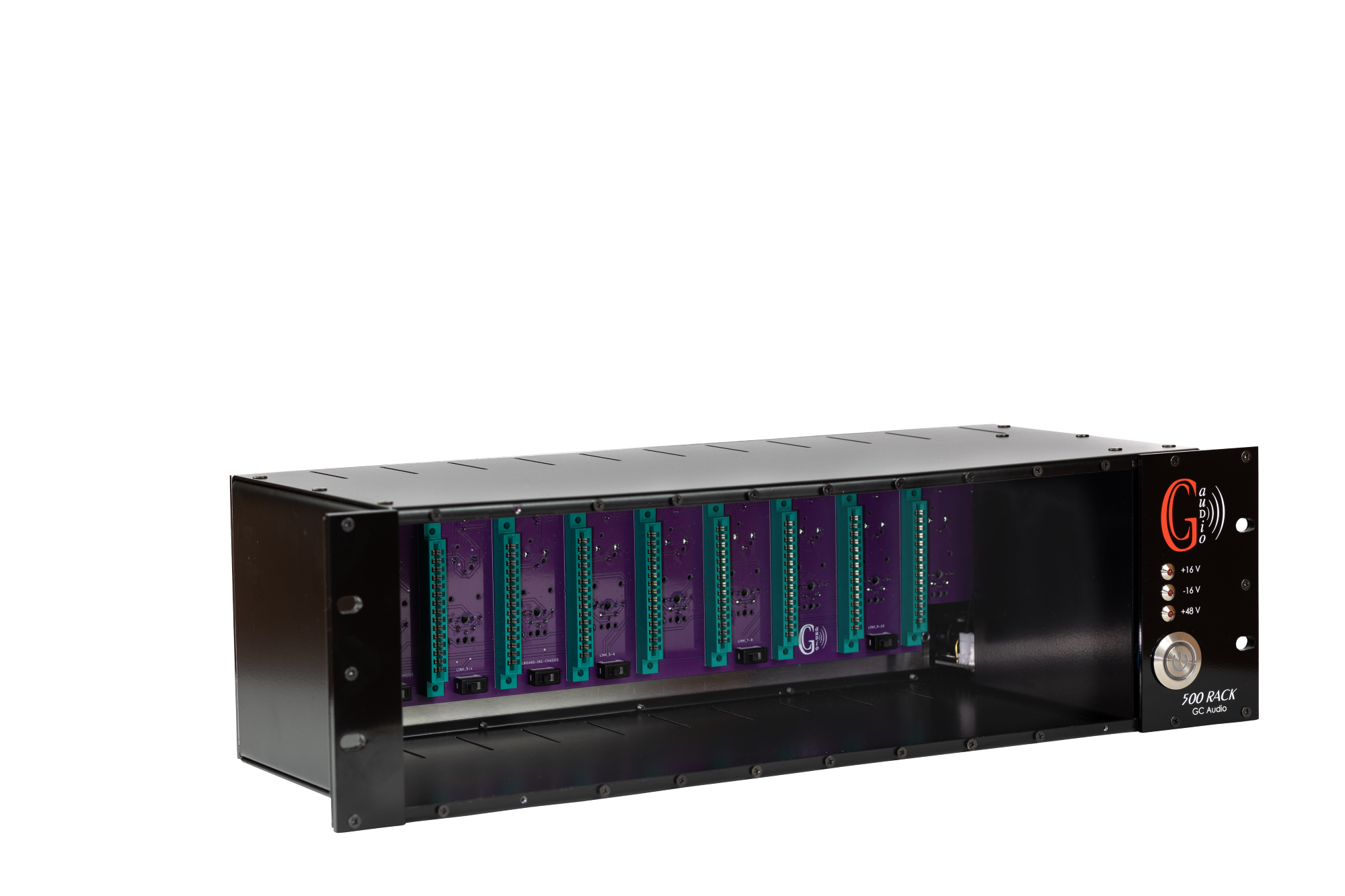

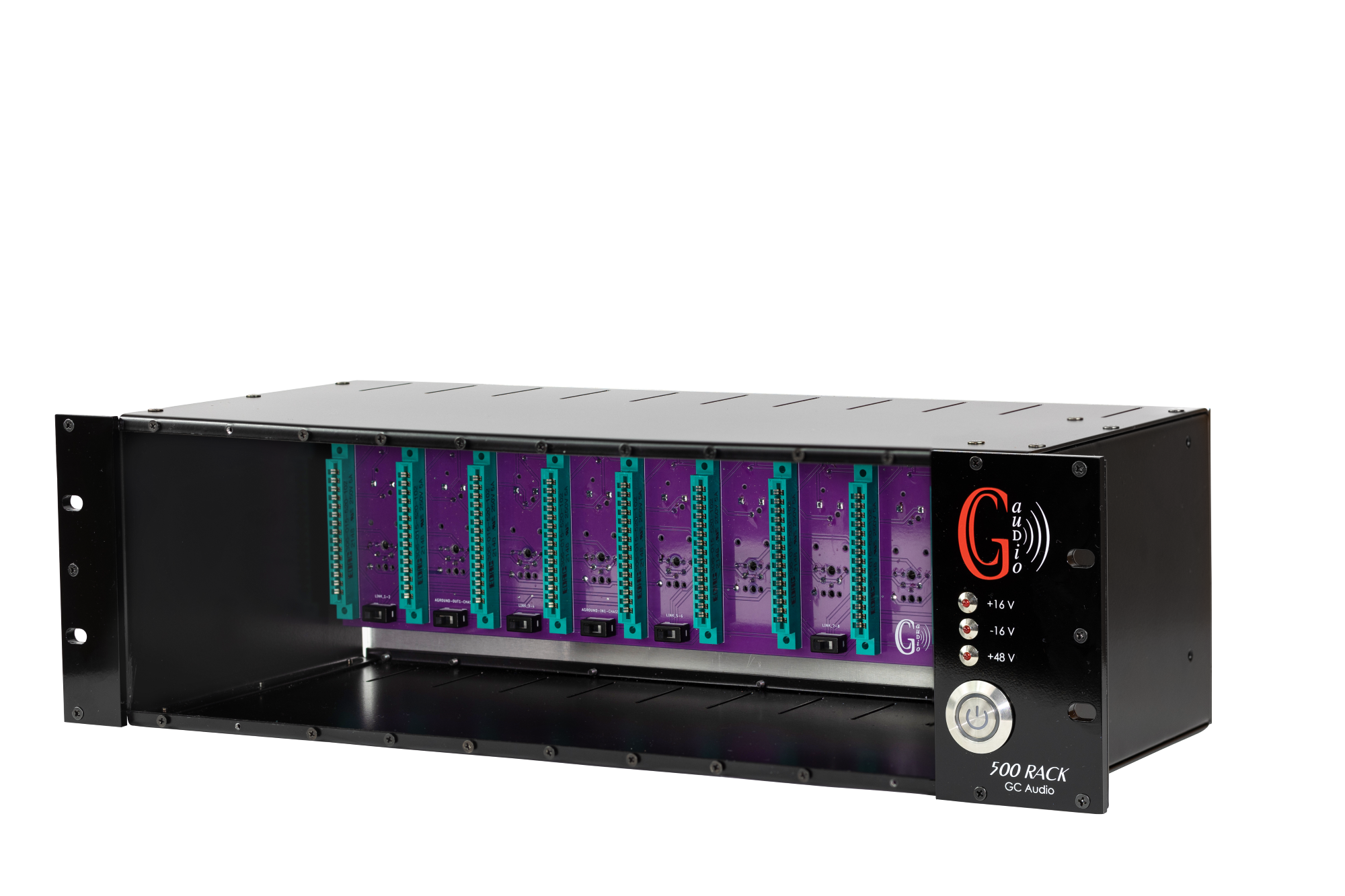

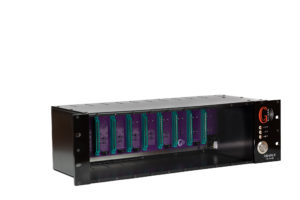

- Material: 1.5mm thick steel.
- Finish: Satin paint for the front and back, double layer industrial paint for the chassis.
- Dimensions: Width 19″, Depth 28.5 cm (11.2″), Height 3U.
- Weight: 10 kg (including external power supply).
Connectors

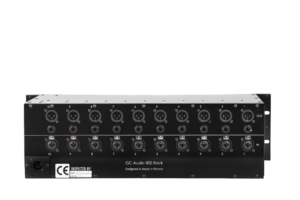

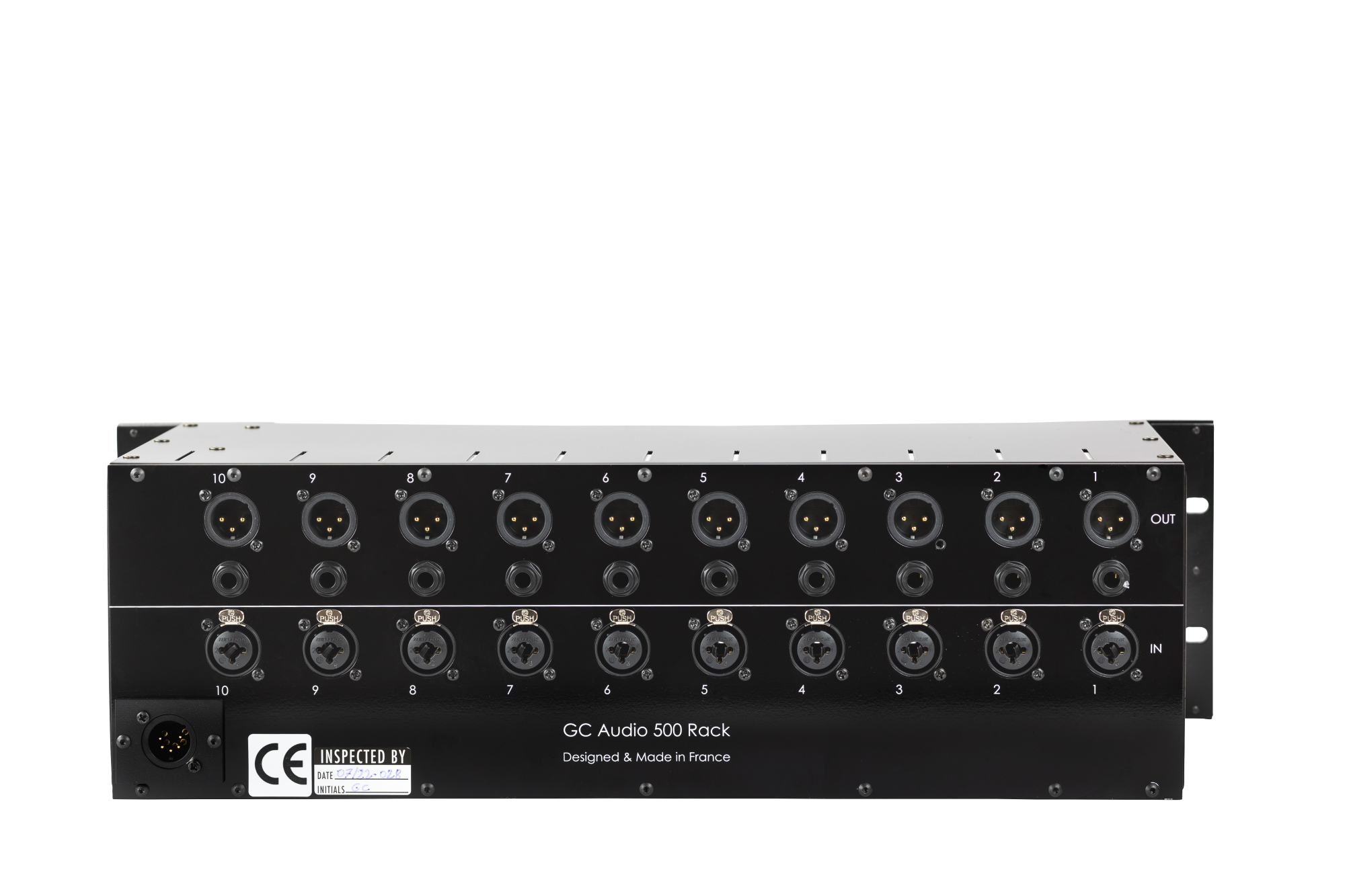

- Inputs: Neutrik Combo.
- Outputs: Neutrik XLR or 1/4″ 3pts jack.
- Power Cord: 3m (10ft) with Neutrik 5-pin connectors.
Controls
- Power Button: Metal body, IP67 standard (dustproof and waterproof).
- LED Indicators: +16V, -16V, +48V with metal body.
- Ground Lift Switches: For input and output ground connection.
Why Choose the GC Audio 500 Rack?
The GC Audio 500 Rack is designed for sound engineers seeking a robust, high-performance chassis for their 500 series modules. With its powerful external linear power supply, thick steel chassis, and high-quality connectors, it ensures optimal isolation and low noise for your audio modules. Whether you’re in the studio or on tour, this rack will elevate your audio setup to new heights.
Applications and Benefits
Studio Recording
Ideal for studio environments where high-quality audio is essential. The GC Audio 500 Rack ensures that every nuance of the performance is captured with clarity and precision.
Live Sound
Perfect for live sound applications where robust and clean audio is crucial. The rack’s low noise characteristics make it a reliable choice for live performances.
Broadcasting
Excellent for broadcasting applications where high-quality, clean audio is paramount. The GC Audio 500 Rack delivers broadcast-quality sound with minimal distortion.
Usage Tips
- Removing Modules: When removing a module from the 500 rack, always pull from the front face, never from the electronic card.
- Handling High Voltage: Be cautious when handling the module as high voltage is present.
- Cleaning: Keep the cartridge connector clean using an alcohol wipe.
- Electromagnetic Interference: Avoid placing the unit near strong magnetic fields such as power supplies, power amplifiers, or loudspeakers.
- Rack Mounting: Use the supplied screws and washers to help preserve the finish of the facia panel. Additional rack-mount side supports are recommended for vibration and transit shocks.
- Cleaning: Use a soft brush around the controls and a damp cloth with household soap to remove dirt. Avoid solvent cleaners.
Safety Instructions
- Earthing: This apparatus MUST be earthed. Under no circumstances should the mains earth be disconnected from the mains lead.
- Changing the Fuse: Replace only with the same value and type of fuse as marked on the unit, 500mA T (230V) or 1000mA T (115V). Always switch off the unit and remove the AC power cable before changing the fuse.
- General Safety: Do not place the apparatus on an unstable surface, insert objects through any apertures, use near water, or block ventilation openings. Install in accordance with the manufacturer’s instructions and avoid placing near heat sources.
- Power Cord: Protect the power cord from being walked on or pinched, particularly at plugs and where they exit from the apparatus.
- Mains Cable: The supplied IEC mains cable must be terminated correctly to the AC mains supply before use. Use only an approved AC plug or power distribution device.
- Voltage Operation: Before adjusting the operating voltage, always switch off the unit and remove the AC power cable. Use a flat blade screwdriver to click the voltage selector to the required position until the legend 115V or 230V appears in the window and fit the appropriate fuse supplied in the fixings pack.
The GC Audio 500 Rack is a top-tier 500 series chassis designed for sound engineers who demand the best in audio quality and performance. Its innovative design, powerful external linear power supply, and robust construction make it a standout choice for any audio professional.
For any further questions or support, feel free to reach out to our customer service team. Happy recording!
Final Thoughts
The GC Audio 500 Rack is not just a tool; it’s an investment in your audio quality. With its robust construction, high-quality components, and meticulous design, it ensures that your recordings are of the highest standard. Whether you’re in the studio, on stage, or in the broadcast booth, this rack will elevate your audio setup to new heights.
