Description

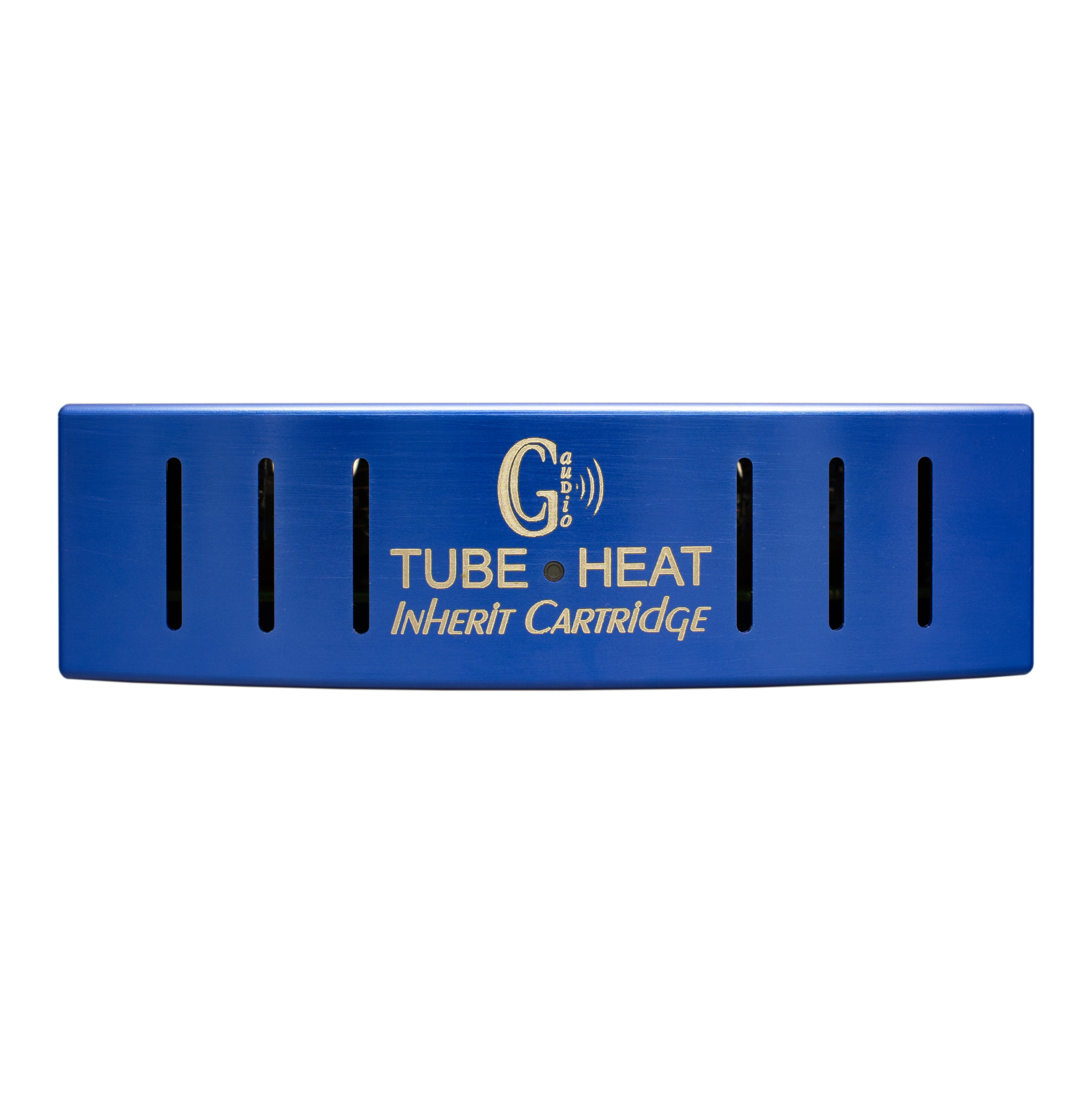

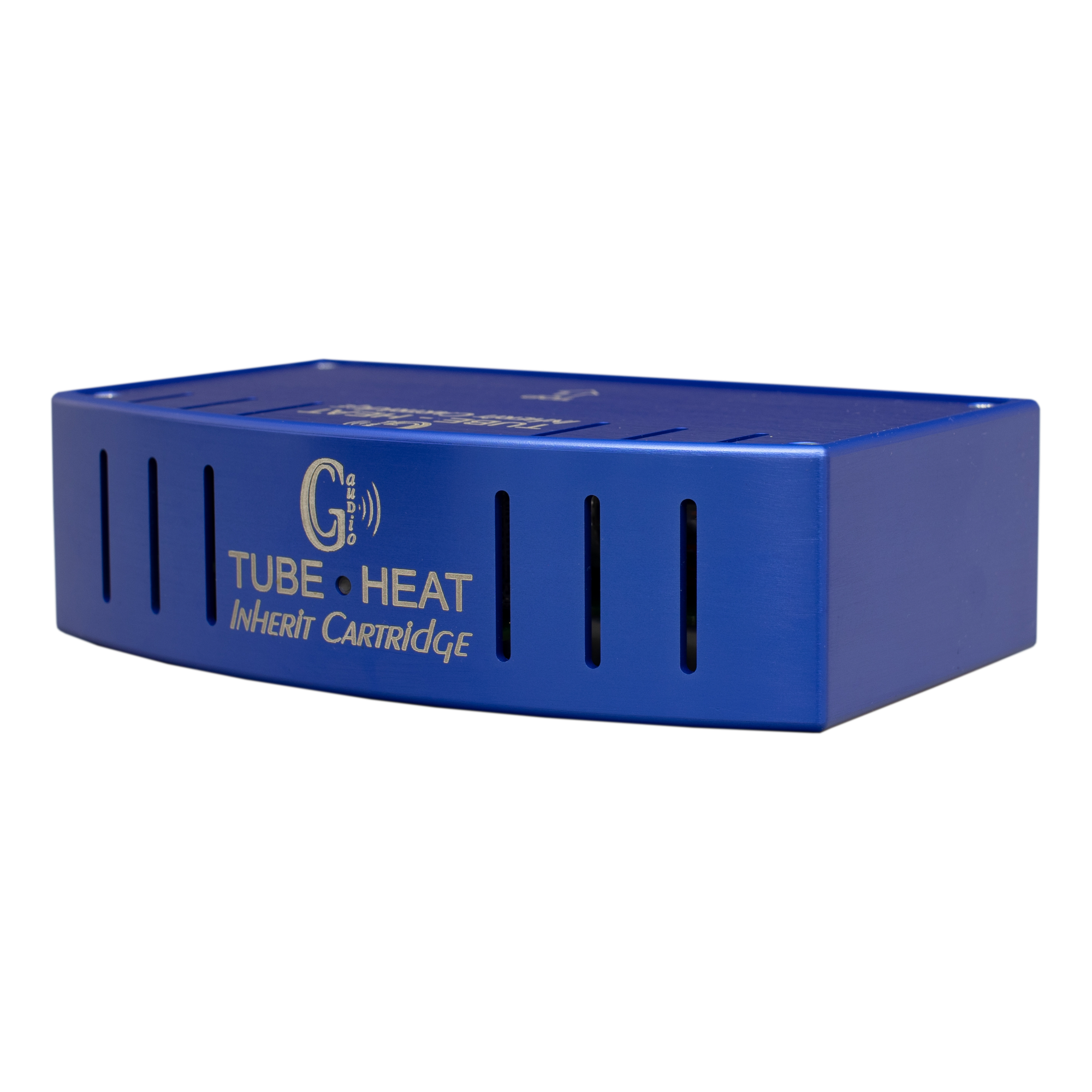

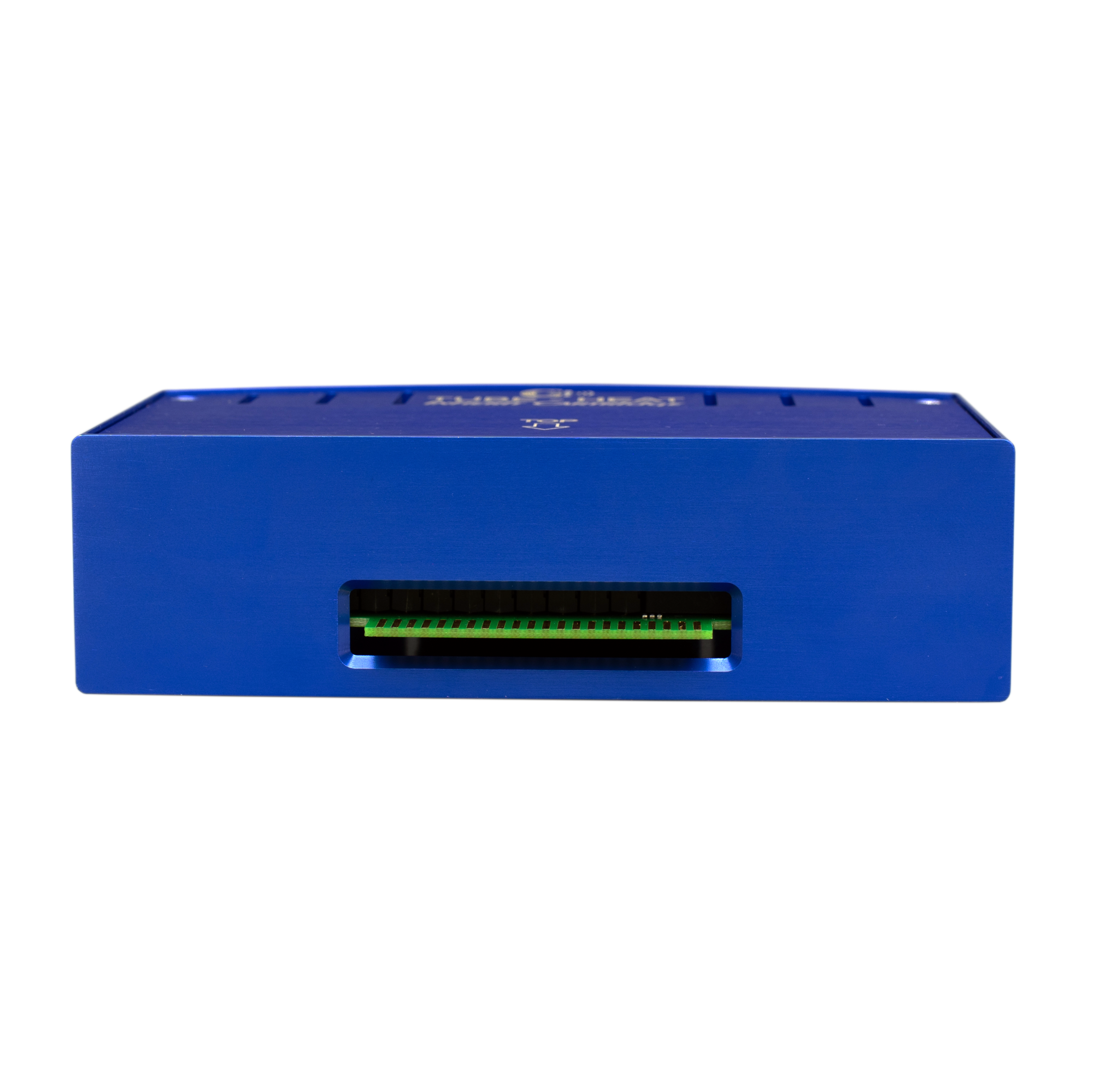

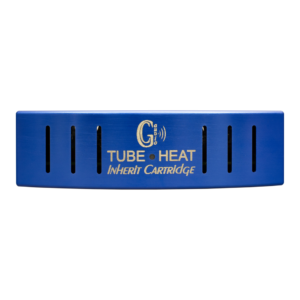

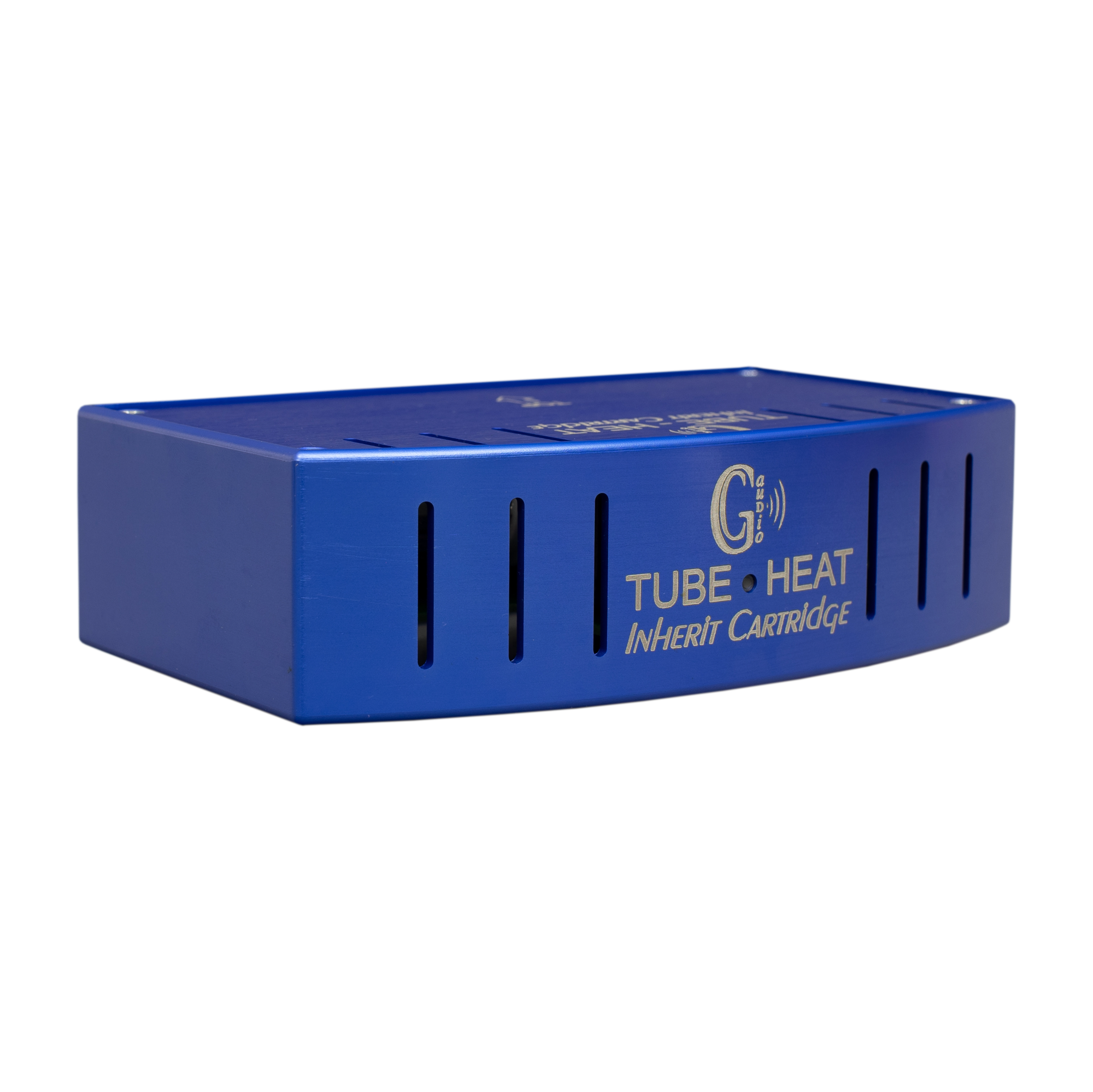

Overview of the Tube Heat Inherit Cartridge

The Tube Heat Inherit Cartridge features twin high voltage ECC82 tubes, ensuring no discrete components in the signal path. Balancing and unbalancing are achieved through transformers, providing a pure and authentic tube sound. This cartridge is particularly recommended for vocals, adding a rich, colorful tone to your recordings.

Creative Usage

By adjusting the gain and lowering the output volume, you can achieve a beautiful analog saturation without overloading your converters. This makes the Tube Heat Inherit Cartridge a versatile creative tool for any audio enthusiast or professional.

Technical Specifications

Key Features

• PAD: -30dB
• Input Impedance: 5K Ohms
• EIN (150 Ohms source @ gain max – 22/22Khz): -126 dB
• THD + N: 0.4%

Gain Steps

The cartridge offers precise gain steps with a variation of +/-1dB:

1. 26dB
2. 30dB
3. 35dB
4. 38dB
5. 43dB
6. 48dB

Gain VS Frequency

For optimal performance, the gain versus frequency settings are as follows:

7. 52dB
8. 55dB
9. 58dB
10. 62dB
11. 64dB
12. 66dB

Phase and THD + N VS Frequency

The cartridge ensures phase coherence and minimal Total Harmonic Distortion plus Noise (THD + N) across various frequencies, providing a clean and distortion-free sound.

The Tube Heat Inherit Cartridge is more than just a preamplifier; it’s a creative tool designed to bring the warmth and color of vintage tube technology to your modern recordings. Whether you’re a professional audio engineer or a passionate hobbyist, this cartridge will elevate your sound to new heights.



Link Technical Data:

GC Audio Inherit – Tube Heat Cartridge Technical Data
