Description

Technical Data Inherit Riser Compressor :

• Preamp Gain Step +/-1dB Inherit Riser Compressor :
  • -6dB
  • 0dB
  • 6dB
  • 14dB
  • 20dB
  • 26dB
  • 34dB
  • 42dB
  • 48dB
  • 55dB
  • 60dB
  • 68dB

Note: Although the high gain allows microphone preamplification, the input impedance is optimized for line levels.

Compressor Stage

The compressor stage features a full VCA compressor from our flagship: the Analog Riser.

Technical Data:

• Threshold: -30dB to +10dB
• Ratio: 1 to 20
• Attack: 0.5ms to 300ms
• Release: 1.5ms to 1.5s
• Make up: -20dB to +20dB
• Knee setting: Soft / Hard
• Auto creator setting: Automatic fast Attack and Release for transient

Compressor, red = Hard Knee, green = soft knee:

• THD + N VS Frequency: Inherit Rack specifications

Inherit Host Rack Specifications

The Inherit host rack included in the Inherit Bundle is crafted with high-quality materials to ensure durability and stability.

Key Features:

• Material: Made from durable steel, ensuring long-lasting use.
• Capacity: High current supply capabilities with 7 different voltages to feed complex electronic design.
• Adjustability: Universal stepped gain, vu meter, low cut filter, and output volume control for all Inherit Cartridges.
• Power Versatility: 110V / 230V Switch on the rear face.

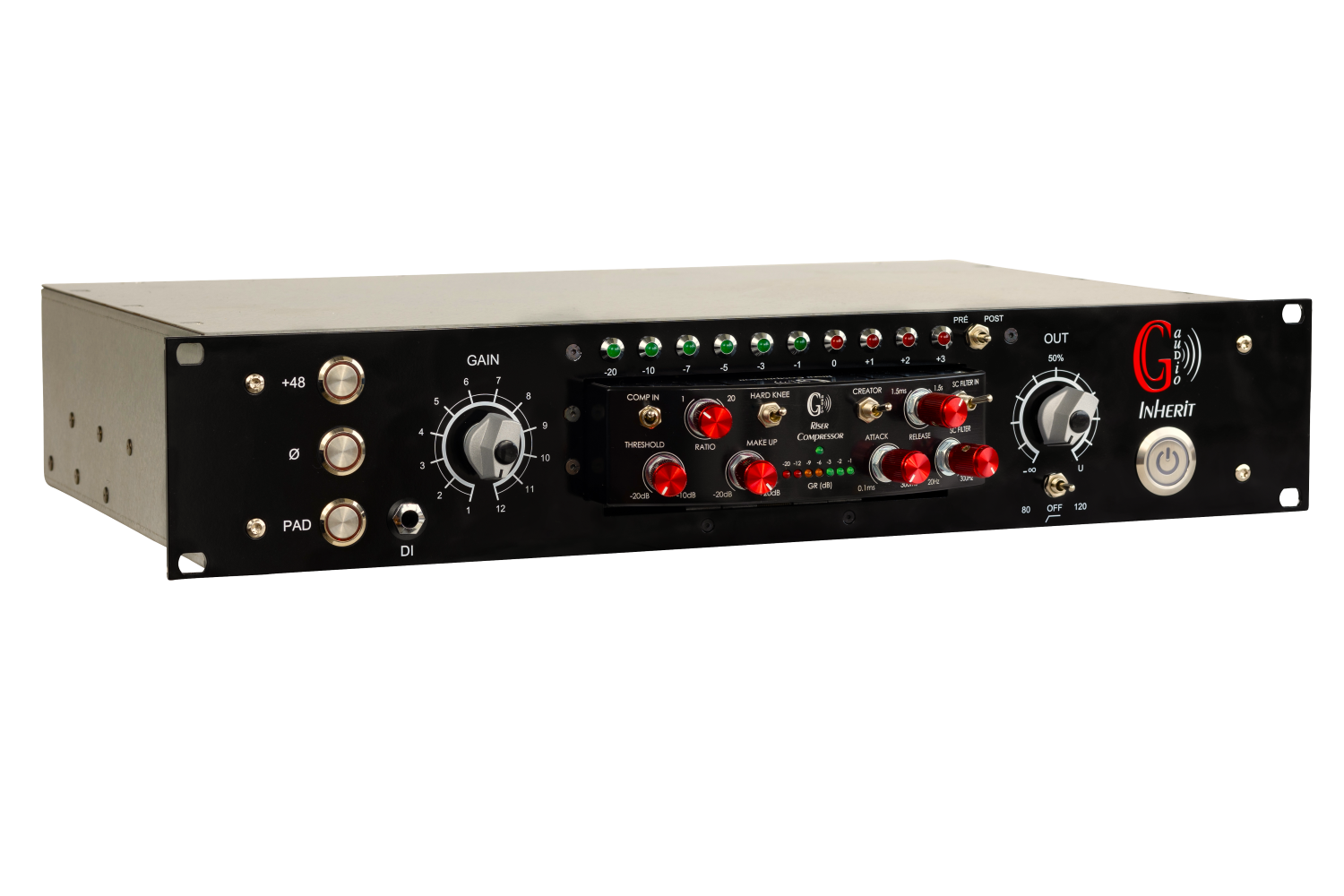

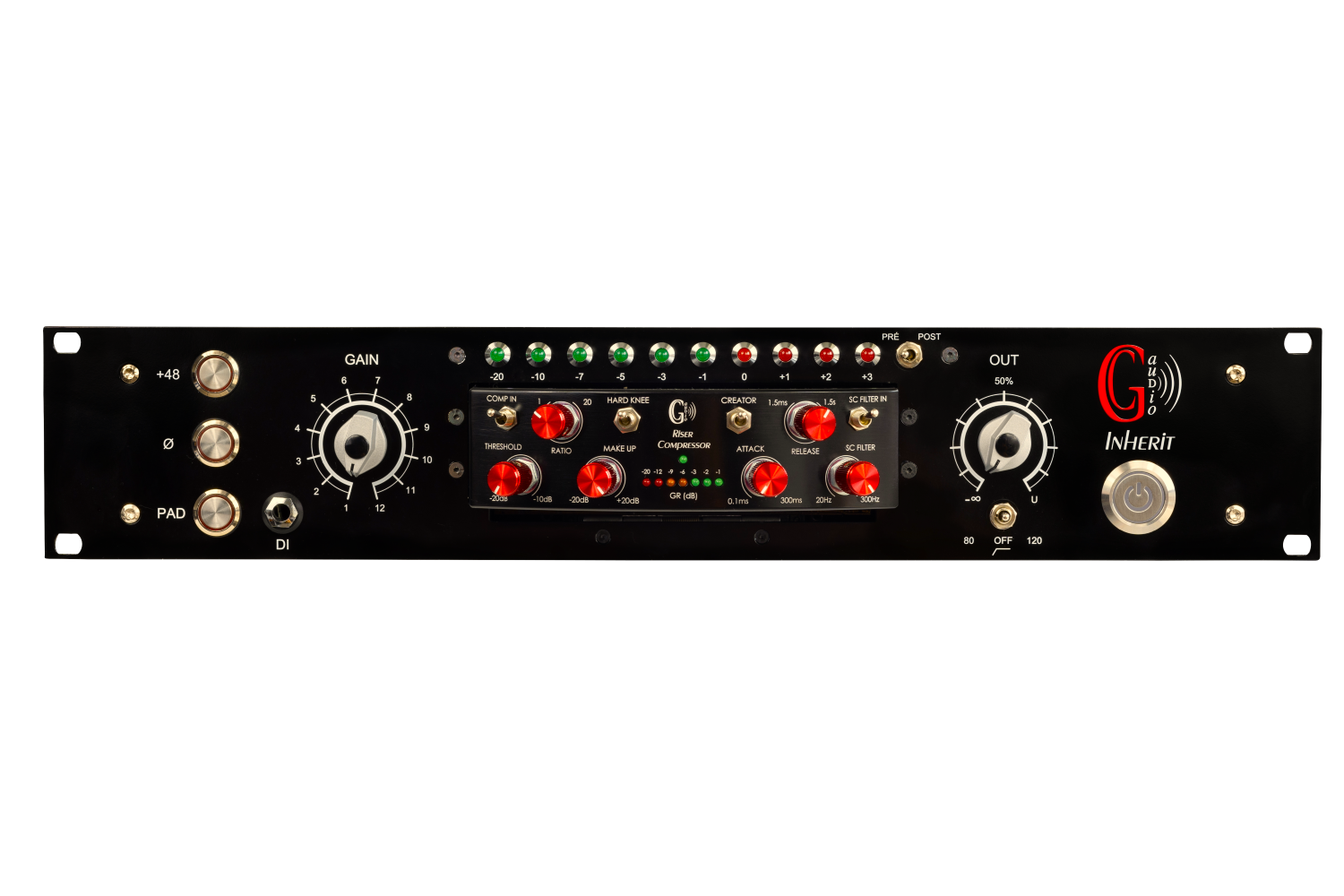

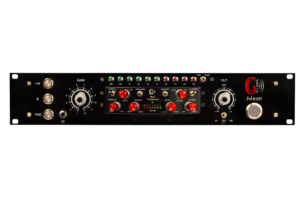

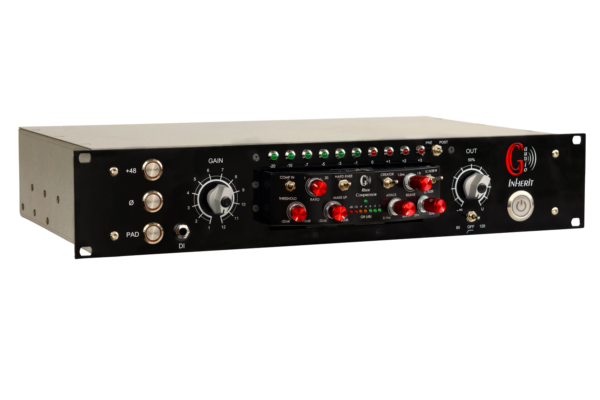

Riser Compressor Cartridge Specifications

The Riser Compressor is a full signal chain processor offering two stages:

1. Preamp Stage:
   • Preamp Gain Step: -6 dB to +68 dB
2. Compressor Stage:
   • Threshold: -30dB to +10dB
   • Ratio: 12 steps, 1.5 to 10
   • Attack: 0.5ms to 300ms
   • Release: 1.5ms to 1.5s
   • Make up: -20dB to +20dB
   • Knee setting: Soft / Hard
   • Auto creator setting: Automatic fast Attack and Release for transient

Why Choose the Inherit System Riser Compressor?

Enhanced Organization

The Inherit System helps you keep your studio organized and clutter-free. With only one 2U rack, you can get many different preamps, compressors, equalizers, harmonic treatment, etc.

Improved Workflow

The Inherit System is a hot-swap system: In a few seconds, without powering off the rack, you can change the cartridge and choose the right function at the right moment.

Reliability Inherit Riser Compressor

No need for a patch bay with the Inherit System, no need to plug and unplug cables to select a device.

Home Studios

For home studios, the Inherit Bundle is perfect for organizing your audio equipment. The rack can hold preamps, comp, equ, and other gear with only one 2U device.

Professional Studios

In professional settings, the Inherit Bundle provides a reliable solution for organizing your equipment. The robust rack can handle heavy-duty use. Given the production costs, the time savings are significant. The Inherit System allows you to quickly choose the right function at the right moment without cable worries.

Live Performances

For live performances, the portability and durability of the Inherit Bundle make it a great choice. The rack can securely hold your equipment. Most live technical failures originate from cables. The Inherit System allows you to quickly choose the right function at the right time without worrying about cables.
