Description

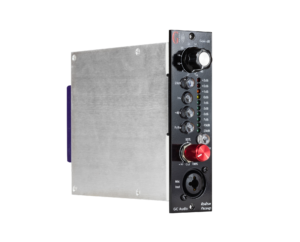

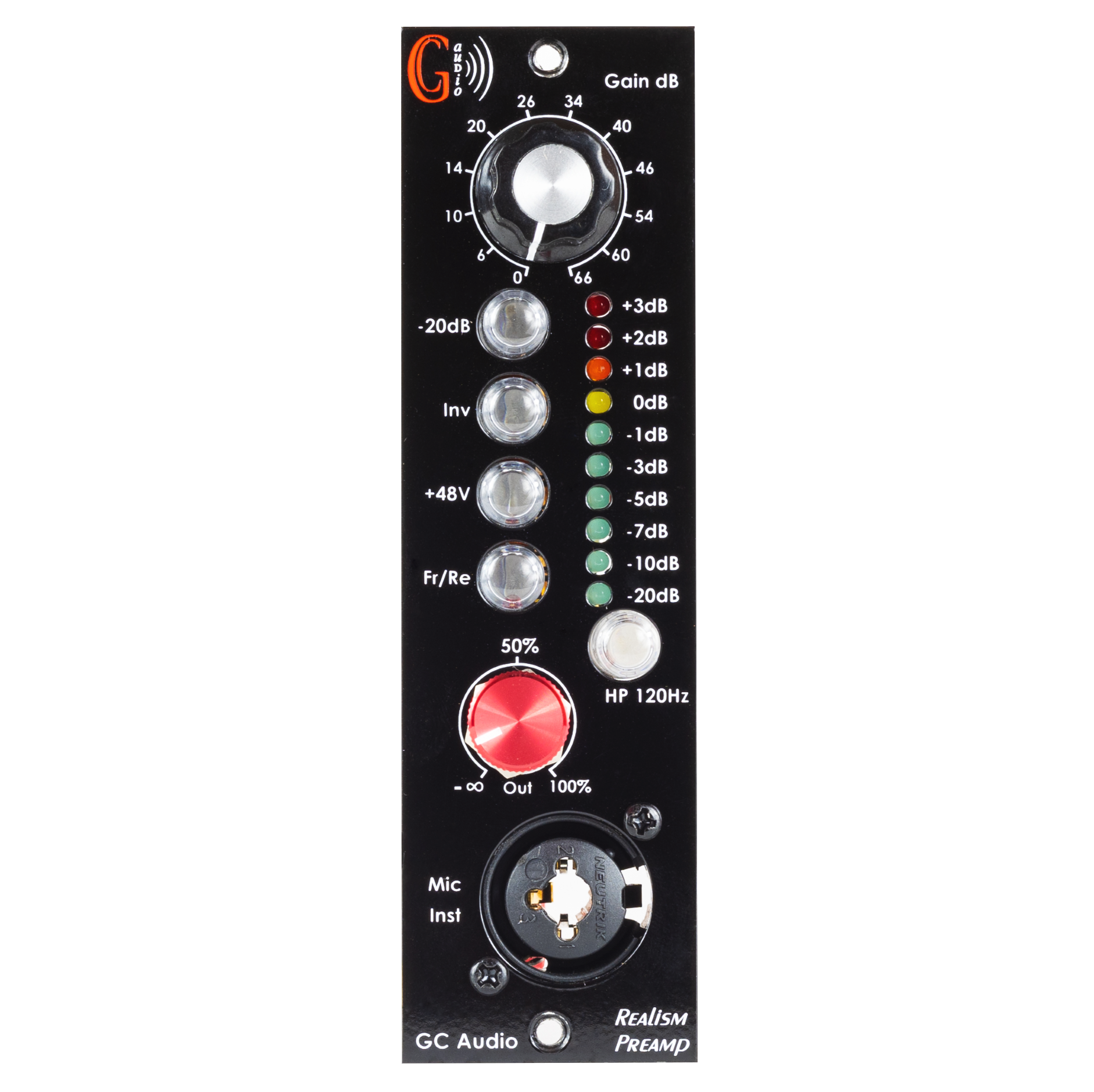

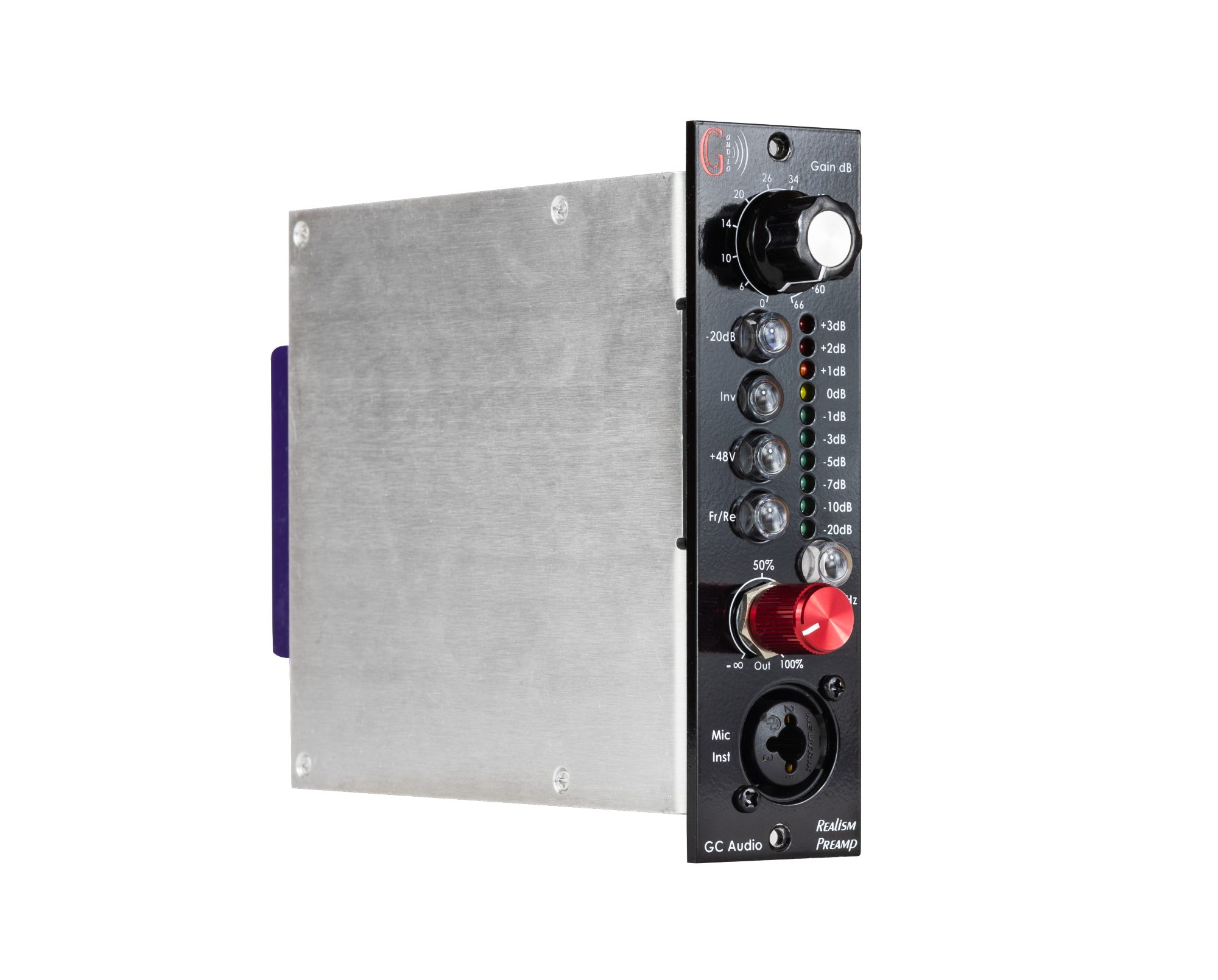

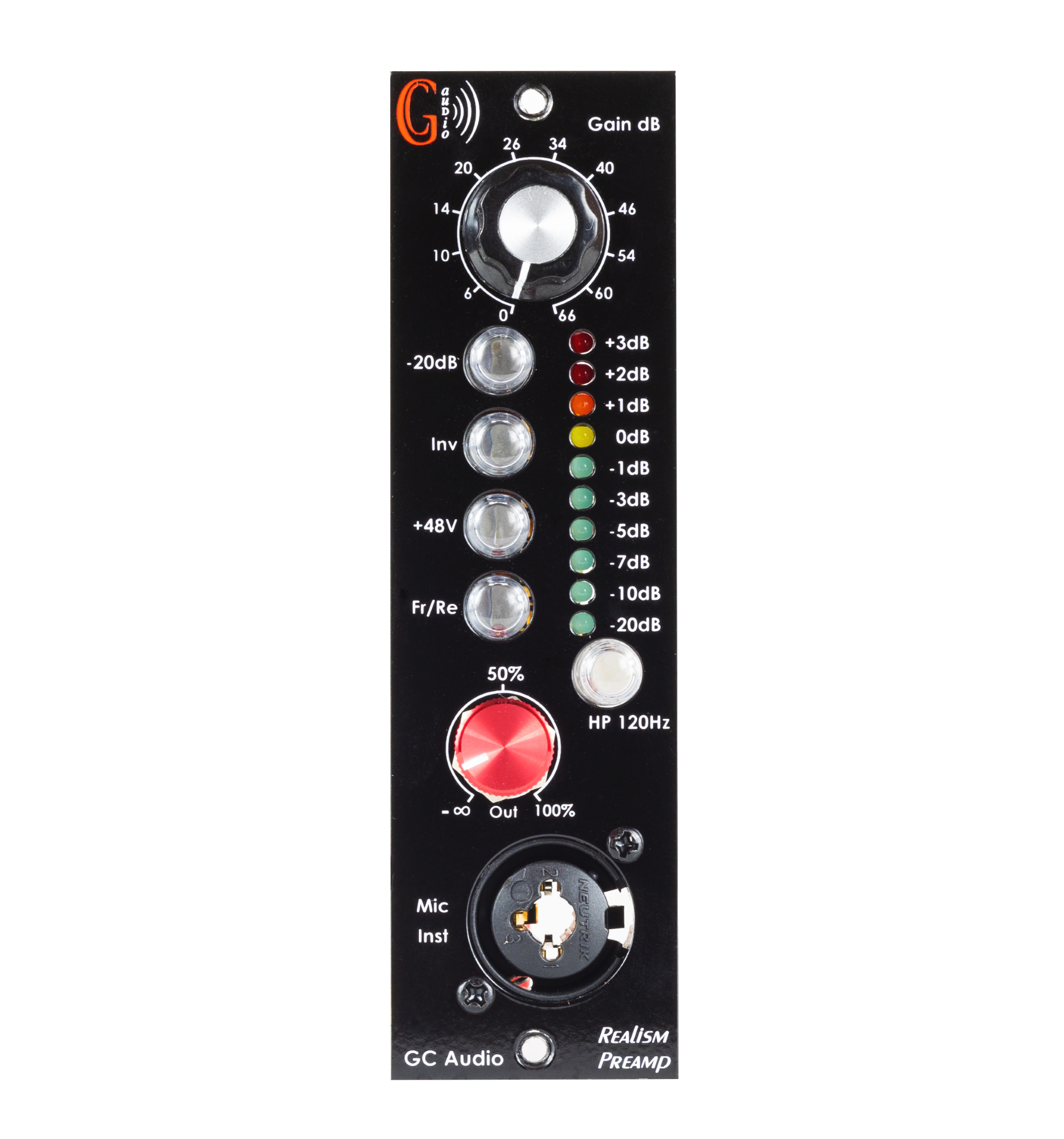

Overview of the GC Audio 500 Realism Preamp

The GC Audio 500 Realism Preamp features a class A differential preamplifier composed of ultra-low noise SSM 2212 paired transistors and OPA1612 operational amplifiers, known for their quiet operation. The careful selection of capacitors, including Wima plastics for low values and Nichicon Long Life low ESR electrolytic for higher values, ensures an optimized impulse response.

Key Features

• Class A Differential Preamp: Composed of ultra-low noise SSM 2212 paired transistors.
• Quiet Operation: Features OPA1612 operational amplifiers, among the quietest on the market.
• High-Quality Capacitors: Wima plastics for low values and Nichicon Long Life low ESR electrolytic for higher values.

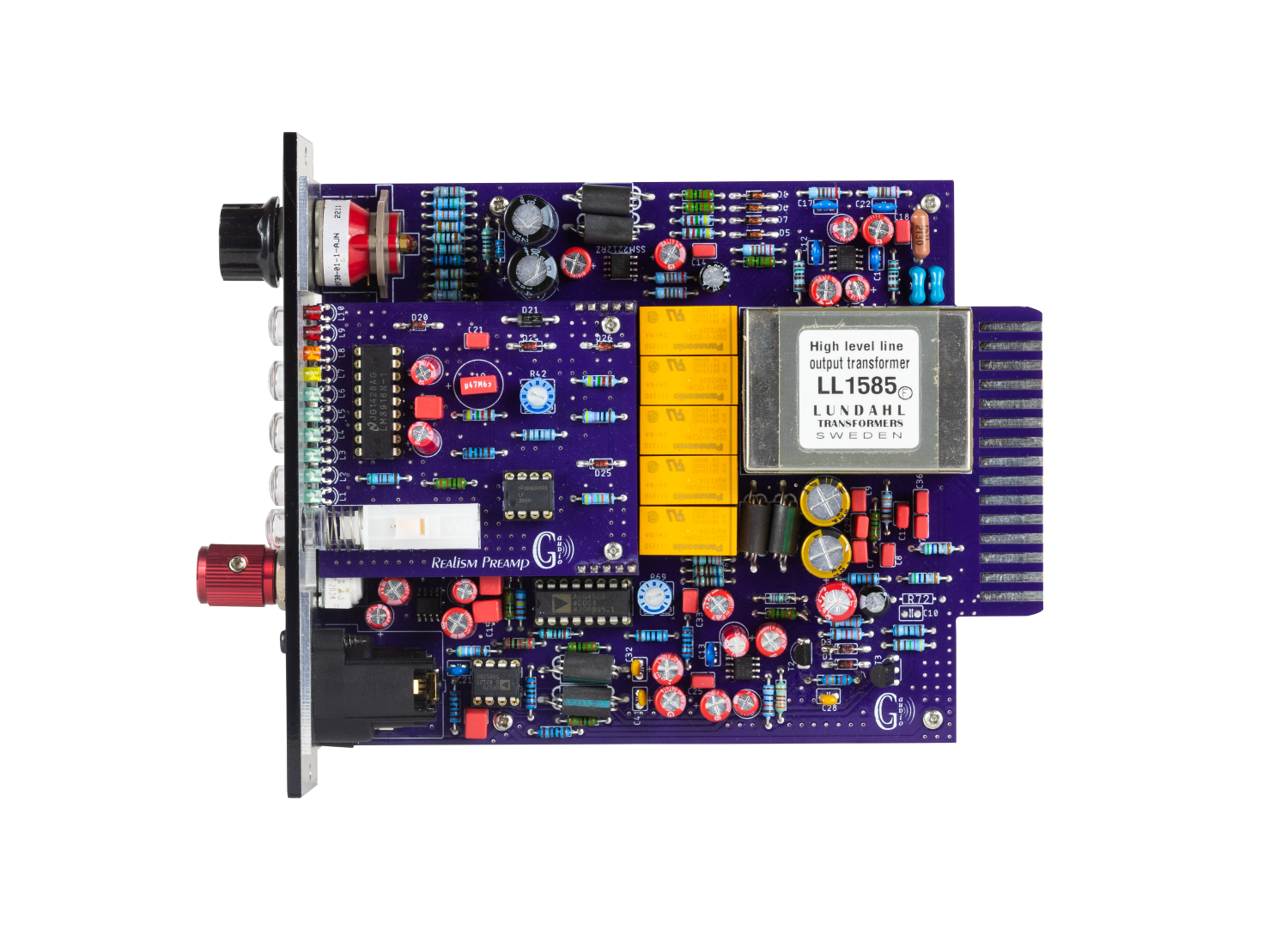

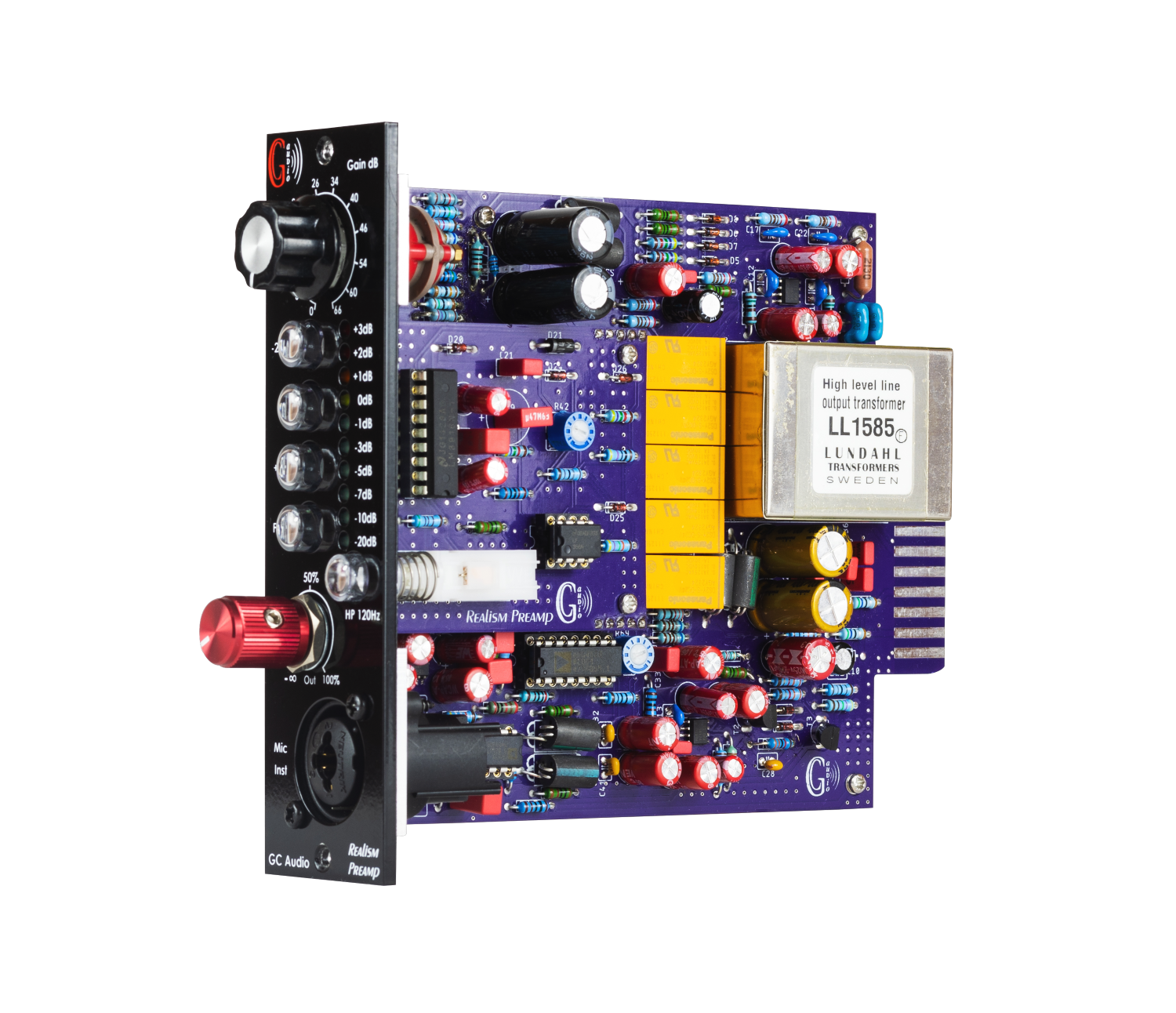

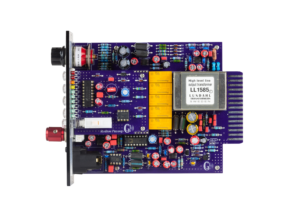

• Output Balancing: Lundahl high-level output transformer with a solid low output impedance current generator stage.
• Mechanical Relays: Gold contact mechanical relays and ultra-low R-On solid-state relays for quiet and responsive operation.

Technical Specifications

Key Measurements

• EIN (Equivalent Input Noise): -130 dBu / -132.21 dBv (20Hz / 20Khz gain 60dB, 150 ohms input)
• THD + N: 0.05%
• Mic Input Impedance: 5K
• Instrument Input Impedance: 500K
• Gain: 12 steps from 0 to 66dB

Frequency Response and Phase

• Frequency Response: Optimized for an impulse response.
• Phase: Ensures accurate and clear sound reproduction.

Why Choose the GC Audio 500 Realism Preamp?

The GC Audio 500 Realism Preamp is designed for sound engineers seeking a very quiet preamplifier with great realism in the highs and flawless reproduction of the sharpest transients. With its class A differential preamp, high-quality capacitors, and Lundahl output transformer, it delivers pristine audio quality with minimal distortion. Whether you’re working on vocals, instruments, or any other audio source, this preamp will bring a clear, realistic, and powerful sound to your recordings.

Applications and Benefits

Studio Recording

Ideal for studio environments where high-quality preamplification is essential. The GC Audio 500 Realism Preamp ensures that every nuance of the performance is captured with clarity and precision.

Live Sound

Perfect for live sound applications where robust and clean preamplification is crucial. The preamp’s low noise characteristics make it a reliable choice for live performances.

Broadcasting

Excellent for broadcasting applications where high-quality, clean audio is paramount. The GC Audio 500 Realism Preamp delivers broadcast-quality sound with minimal distortion.

Usage Tips

• Removing the Module: When removing the module from a 500 rack, always pull from the front face, never from the electronic card.
• Handling High Voltage: Be cautious when handling the module as high voltage is present.
• Cleaning: Keep the cartridge connector clean using an alcohol wipe.
• Electromagnetic Interference: Avoid placing the unit near strong magnetic fields such as power supplies, power amplifiers, or loudspeakers.

Conclusion

The GC Audio 500 Realism Preamp is a top-tier microphone and instrument preamplifier designed for sound engineers who demand the best in audio quality and realism. Its innovative design, superior components, and meticulous engineering make it a standout choice for any audio professional.

For any further questions or support, feel free to reach out to our customer service team. Happy recording!

Safety Instructions

• Earthing: This apparatus MUST be earthed. Under no circumstances should the mains earth be disconnected from the mains lead.
• Changing the Fuse: Replace only with the same value and type of fuse as marked on the unit, 500mA T (230V) or 1000mA T (115V). Always switch off the unit and remove the AC power cable before changing the fuse.
• General Safety: Do not place the apparatus on an unstable surface, insert objects through any apertures, use near water, or block ventilation openings. Install in accordance with the manufacturer’s instructions and avoid placing near heat sources.
• Power Cord: Protect the power cord from being walked on or pinched, particularly at plugs and where they exit from the apparatus.
• Mains Cable: The supplied IEC mains cable must be terminated correctly to the AC mains supply before use. Use only an approved AC plug or power distribution device.
• Voltage Operation: Before adjusting the operating voltage, always switch off the unit and remove the AC power cable. Use a flat blade screwdriver to click the voltage selector to the required position until the legend 115V or 230V appears in the window and fit the appropriate fuse supplied in the fixings pack.

Cleaning and Maintenance

• Cleaning: The product should be cleaned with a soft brush around the controls. If the facia becomes dirty, use a damp cloth with a little household soap to remove the dirt. DO NOT use solvent cleaners.
• Rack Mounting: This product is designed to be rack-mounted using the supplied screws and washers to help preserve the finish of the facia panel. Additional rack mount side supports are recommended for vibration and transit shocks.
• Audio Connections: Two 3-pin XLR connectors are provided on the back side. Inputs are female, outputs are male. All connectors follow the European wiring convention: Pin 1 = Screen, Pin 2 = Hot (+), Pin 3 = Cold (-). Jack input for instrument in front side.

Final Thoughts

The GC Audio 500 Realism Preamp is not just a tool; it’s an investment in your audio quality. With its robust construction, high-quality components, and meticulous design, it ensures that your recordings are of the highest standard. Whether you’re in the studio, on stage, or in the broadcast booth, this preamp will elevate your audio to new heights.

Link Technical Data:

GC Audio Realism Preamp Technical Data
