Description

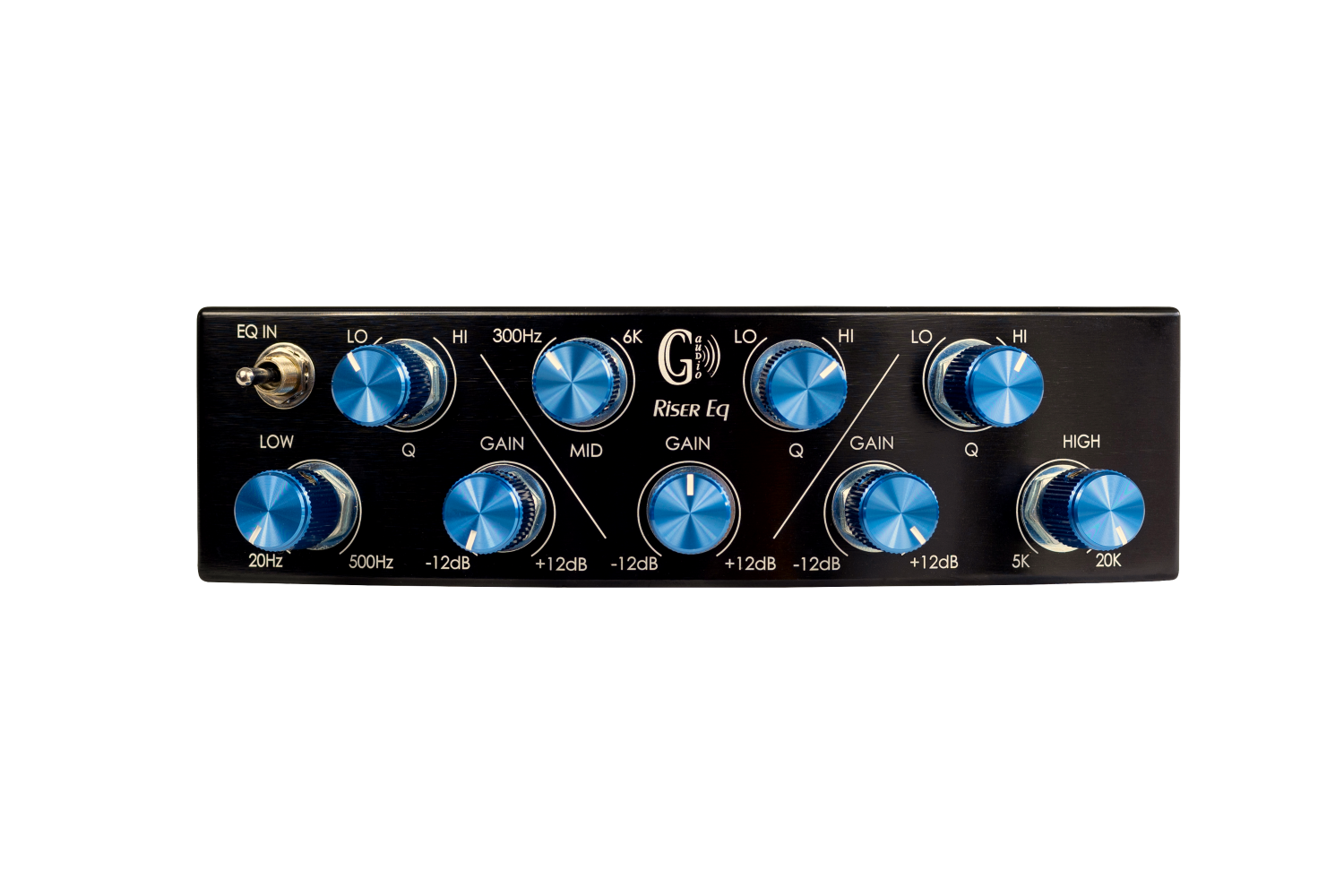

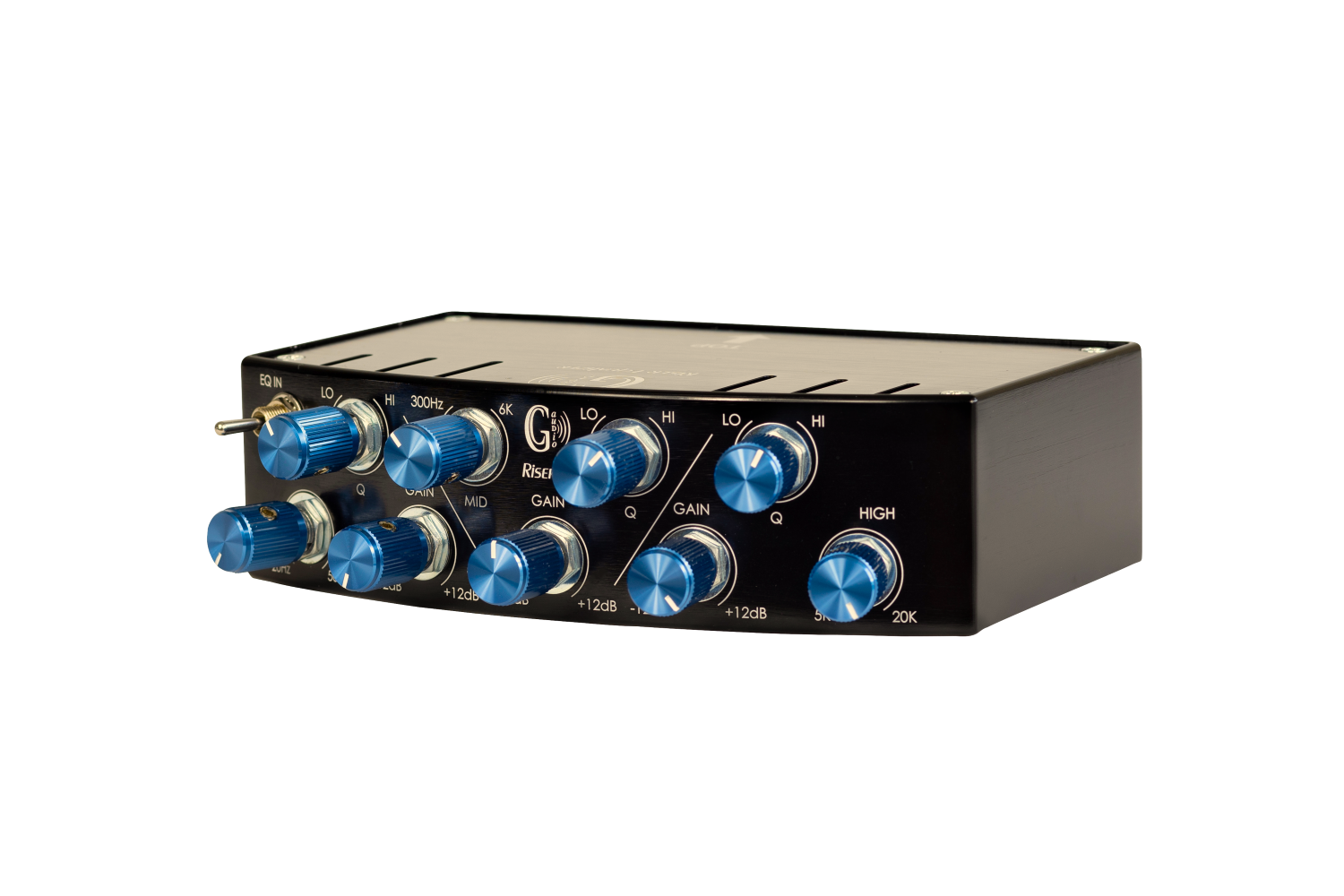

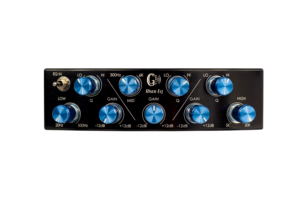

3-Band Full Parametric Equalizer

The second stage is a 3-band full parametric equalizer from our flagship product, the Analog Riser. This equalizer provides unparalleled control over your audio signal, allowing you to shape your sound with surgical precision.

Technical Data

All measurements were made with an Audio Precision device, with an input impedance of 100K Ohms.

Preamp Stage

The preamp stage offers a gain step of +/-1dB. Although the high gain allows for microphone preamplification, the input impedance is optimized for line levels. The gain settings are as follows:

1. -6dB
2. 0dB
3. 6dB
4. 14dB
5. 20dB
6. 26dB

Equalizer Stage

The equalizer stage provides the following gain settings:

1. 34dB
2. 42dB
3. 48dB
4. 55dB
5. 60dB
6. 68dB

Frequency Bands

• Low Frequency: 20Hz to 500Hz, gain ranges from -12dB to +12dB, with variable Q.
• Medium Frequency: 300Hz to 6kHz, gain ranges from -12dB to +12dB, with variable Q.
• High Frequency: 5kHz to 20kHz, gain ranges from -12dB to +12dB, with variable Q.

Performance Metrics

• Gain VS Frequency
• THD + N VS Frequency
• Equalizer Typical Curves

Why Choose the Riser Equalizer Inherit Cartridge?

The Riser Equalizer Inherit Cartridge is designed for professionals who demand the best in audio processing. Whether you’re a studio engineer, a live sound technician, or a passionate audiophile, this cartridge offers the tools you need to achieve exceptional sound quality.

Key Features

• Hybrid Mic/Line Preamp: Versatile and high-quality preamplification for both microphone and line-level signals.
• 3-Band Parametric Equalizer: Precise control over low, mid, and high frequencies with variable Q for each band.
• High Gain Settings: Up to 68dB of gain for powerful signal amplification.
• Precision Engineering: Designed with an Audio Precision device for accurate and reliable performance.

Benefits

• Superior Sound Quality: Achieve crystal-clear audio with minimal distortion.
• Flexibility: Adapt to any audio scenario with versatile gain and frequency settings.
• Professional Grade: Built to meet the demands of professional audio engineers.

Conclusion

The Riser Equalizer Inherit Cartridge is more than just an audio processor; it’s a tool that empowers you to create and shape sound with unmatched precision and clarity. Whether you’re in the studio or on the stage, this cartridge is your key to achieving professional-grade audio quality.
